Euthanex Cage Lids
Euthanex lids allow animals to be gently euthanized through the precise control of gas introduction while they remain in their home cages, thereby minimizing added stress. The optional flow restrictor avoids the need to adjust the flow rate due to a change in cage numbers or size It is preset for a specific cage volume. This is often used in combination with the EA-32002C and EA-34004C Lab Controle Units with Individual Start. .

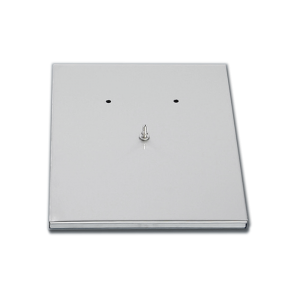

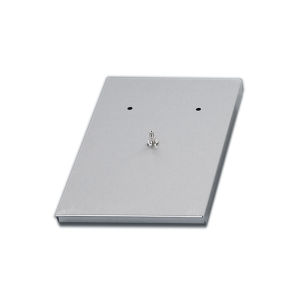

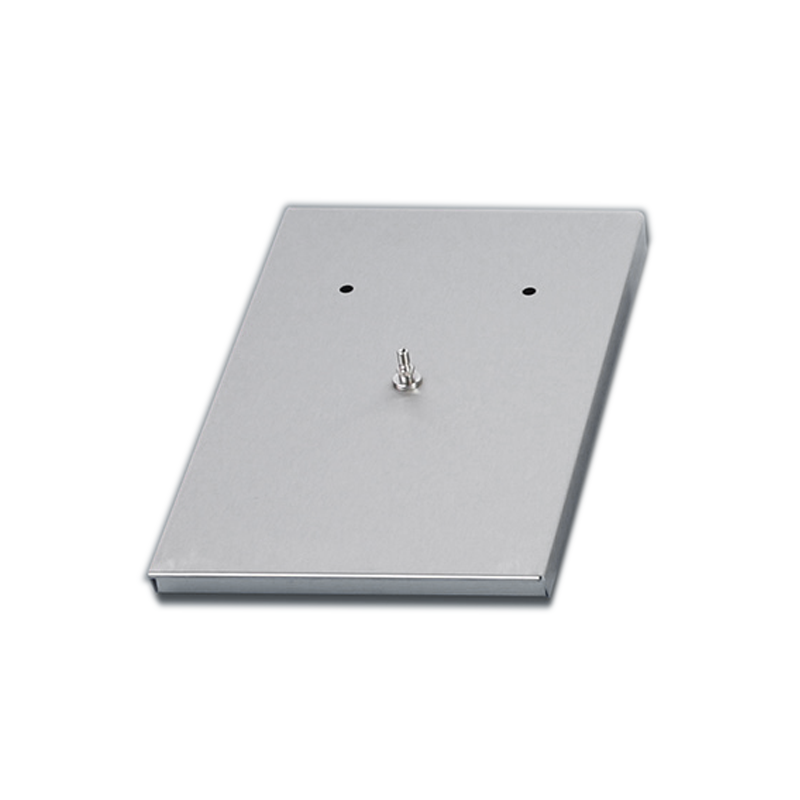

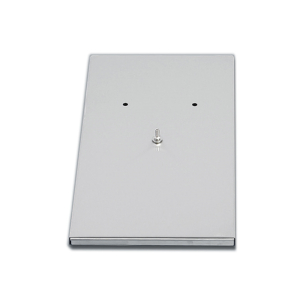

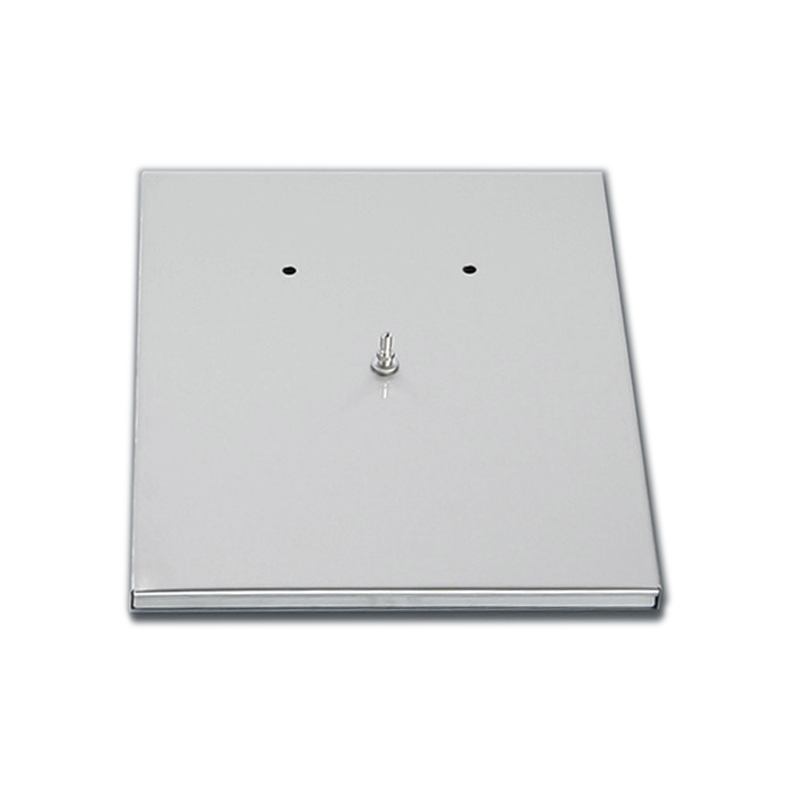

Euthanex Cage Lids
- Allows treatment of animals in their home cage
- Heavy duty stainless steel construction
- Includes an easy quick disconnect fitting for gas input
- Foam gasket for secure fit is available
- Custom lid sizes and additional flow restrictors are also available
Super Small: 33 x 22,8 cm (type 2 cages)
Small: 40,6 x 25,4 cm (type 2L cages)
Medium: 52 x 27,9 cm (type 3 cages)
Large: 58,5 x 41,9 cm
Double Deckers : 45,7 x38,1 cm

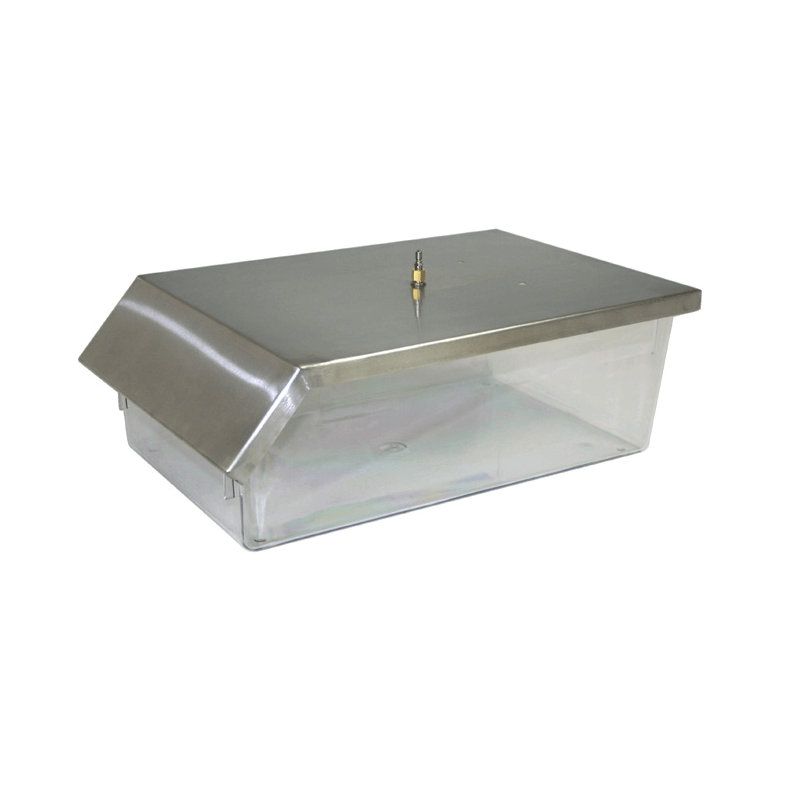

Type 4 cage (standard EU type 4 cages)

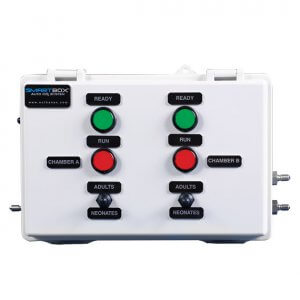

EA-32002C Two Cage Output – Individual Start
The EA-32002C Two Cage Output unit with Individual Start automates on/off gas flow at the push of a button, delivering CO2 to individual induction chambers or Euthanex Cage Lids. The EA-32002C is designed for small scale use by individual investigators in their laboratories. The Controller has two separate and independent gas outputs – allowing up to two cages to be euthanized individually or staggered. This feature increases the user efficiency when individually euthanizing a large number of animals. The run and ready lights easily indicate outputs in operation. Operates at a fixed flow rate based on the external CO2 source.
Euthanex recommends pairing Flow Restrictors with our lids or Sure-Seal Chambers for the EA-32002C to avoid the need to adjust the incoming flow rate as the number of cages connected changes. Flow Restrictors are chosen according to your cage size and installed into the Euthanex lid or Sure-Seal Chamber. Using consistent pressure, the AVMA compliant flow rate will be delivered to each cage – regardless of the number of chambers in use
Smartbox® Prodigy Lab Control Unit
The EA-33000TS SMARTBOX® Prodigy Touch Screen Controller allows administrators to program an unlimited number of cages and sizes, all while an administrator only needs to select the flow rate percentage. The EA-33000TS will automatically calculate the required flow rate. An unlimited number of password-protected users adds even more flexibility. Each user can only see the cages authorized by the administrator. The user can connect up to 3 cages at one time. The Touch Screen display shows the cycle, cycle time, and total time remaining.By utilising the animals home cage and a slow fill rate (10-30% per min) for the procedure this system is designed to provide rodent CO2euthanasia with minimum stress. Using simple touch screen controls the Prodigy System allows the administrator to program an unlimited number of cage sizes with pre-set flow rates and dwell times that cannot be changed by the users.
EA-31000 Single Cage Output – Single Preset Time
The EA-31000 Single Cage Output with Single Preset Time is designed for small scale use by individual researchers in their laboratories. The operator automates on/off gas flow at the push of a button, delivering CO2 to an individual chamber or Euthanex Cage Lid. Includes programmable charge and dwell time. The run and ready lights visually indicate operation and completion.
